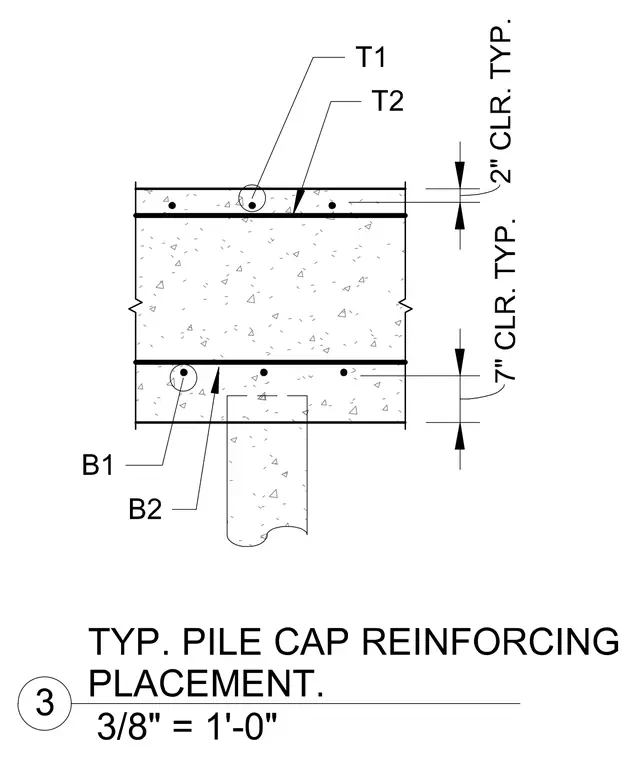

Typical reinforcing steel placement within a concrete pile cap. Top reinforcing bars T1 and T2 are positioned with a typical clearance of two inches. Bottom reinforcing bars B1 and B2 maintain a typical clearance of seven inches from the bottom face. The concrete cap bears directly onto the underlying structural pile.
