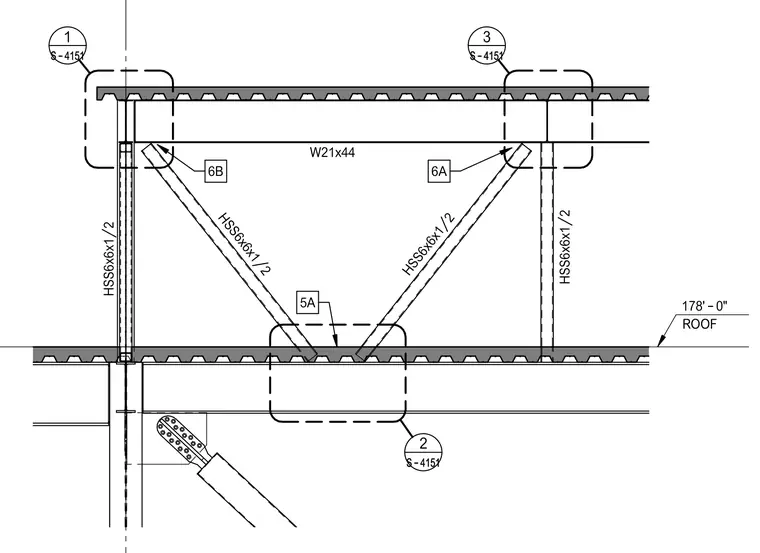

A wide-flange beam designated as W21x44 spans horizontally beneath hollow structural section columns and diagonal braces of size HSS6x6x1/2. The structural members intersect at the roof level indicated at 178'-0". Multiple detail callouts reference related connections across the drawing set.
178'-0" ROOF HSS6x6x1/2 HSS6x6x1/2 HSS6x6x1/2 HSS6x6x1/2 W21x44 6A 6B S-4151 1 S-4151 3 S-4151 2 5A
