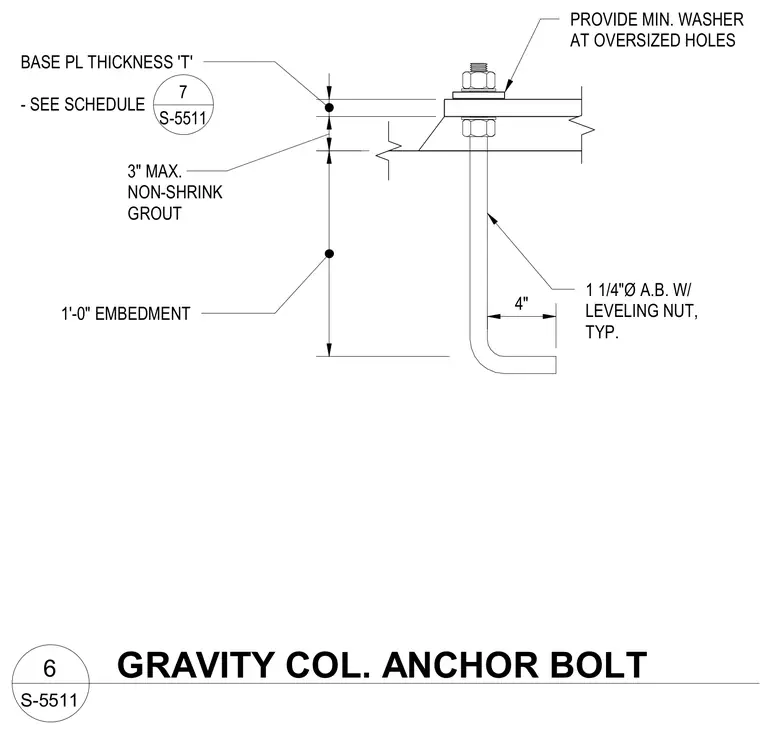

A gravity column anchor bolt assembly is embedded in concrete or masonry. The connection utilizes a 1 1/4-inch diameter anchor bolt with a leveling nut and a minimum washer at oversized holes. A non-shrink grout layer with a 3-inch maximum thickness is provided beneath the base plate, which has a thickness designated per the schedule. The anchor bolt features a 1-foot embedment depth with a hooked end detailing.
1 1/4"Ø A.B. W/ LEVELING NUT, TYP. PROVIDE MIN. WASHER AT OVERSIZED HOLES 3" MAX. NON-SHRINK GROUT BASE PL THICKNESS 'T' - SEE SCHEDULE 1'-0" EMBEDMENT 7 S-5511 4" S-5511 6 GRAVITY COL. ANCHOR BOLT
