Structural · S-4MG7A

Concrete Tilt-Up Panel Lintel Beam and Header Reinforcing Detail

Materials

Concrete

Elements

Columns Beams Walls Arches Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

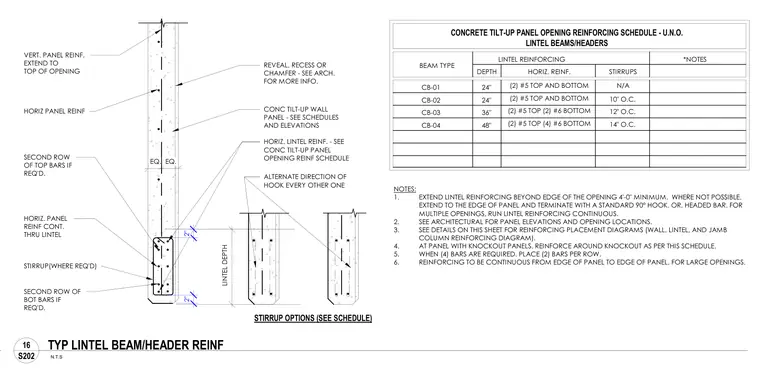

Concrete tilt-up wall panel lintel beam and header reinforcing detail featuring horizontal and vertical panel reinforcing continuous through the lintel, with optional second rows of top and bottom bars and stirrups spaced per the lintel reinforcing schedule. Lintel reinforcing extends four feet minimum beyond the edge of the opening or terminates with standard ninety-degree hooks or headed bars at the panel edge. Stirrups alternate hook directions every other one. Beam types CB-01 through CB-04 appear in a schedule detailing corresponding depths, top and bottom reinforcing sizes, and stirrup spacing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
