Structural · S-4ME2Y

Beam to HSS Column Knife Plate Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Beam-to-Beam Welded Connection Bolted Connection

About this detail

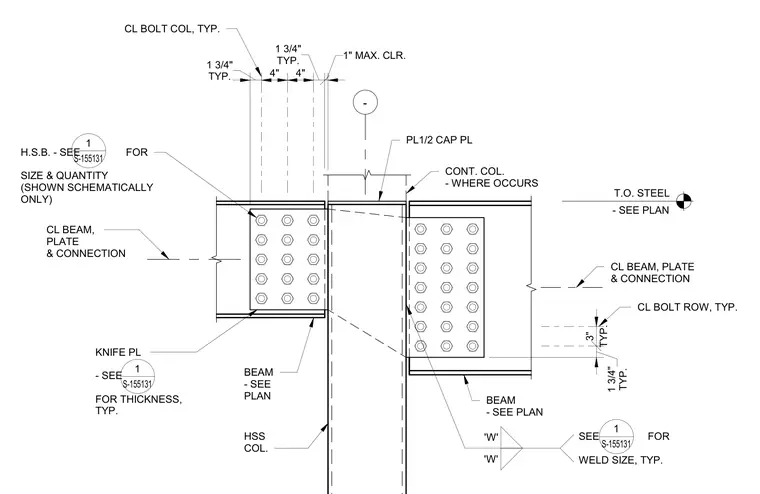

A hollow structural section column receives incoming steel beams through a slotted knife plate connection. The knife plate features high-strength bolts sized and spaced per structural plans, with typical edge distances and bolt row spacings clearly indicated. A half-inch thick cap plate is provided at the column top where applicable, and fillet welds secure the plates with sizes referenced on the drawings. Beams maintain a maximum one-inch clearance from the column face as shown.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
