A structural steel column and continuous beam intersection features diagonal buckling-restrained braces connected via pins and gusset plates designed per the manufacturer. Twelve-millimeter web stiffeners are welded to each side of the column web typically, and twenty-millimeter stiffeners with ten-millimeter fillet welds reinforce the beam-to-column joint. The gusset plates maintain a fifty-millimeter clearance to the slab, and a chamfer is applied per the manufacturer requirements. Bolted beam splice connections are located outboard of the gusset plate assembly on either side of the column. Brace and pin connections are provided by others.

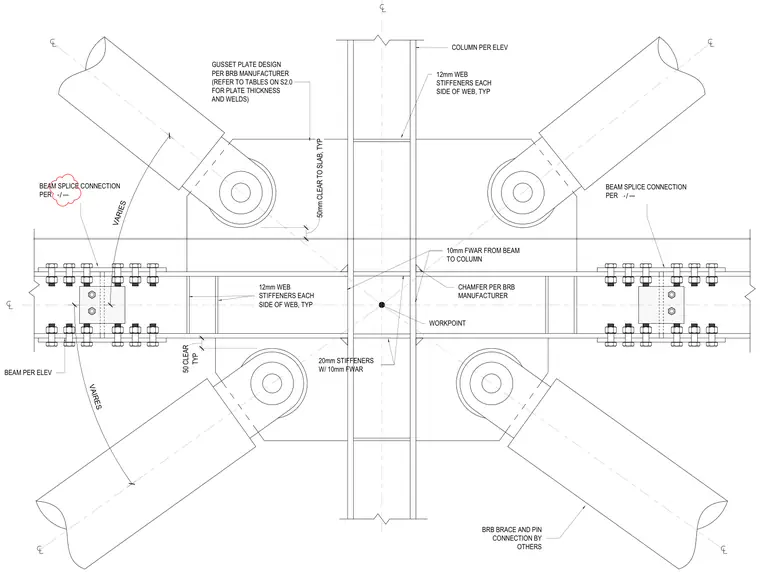

WORKPOINT VARIES VAIRES BRB BRACE AND PIN CONNECTION BY OTHERS CHAMFER PER BRB MANUFACTURER 12mm WEB STIFFENERS EACH SIDE OF WEB, TYP 12mm WEB STIFFENERS EACH SIDE OF WEB, TYP COLUMN PER ELEV BEAM PER ELEV 50mm CLEAR TO SLAB, TYP TYP 50 CLEAR BEAM SPLICE CONNECTION PER / - --- BEAM SPLICE CONNECTION PER / - --- 20mm STIFFENERS W/ 10mm FWAR 10mm FWAR FROM BEAM TO COLUMN GUSSET PLATE DESIGN PER BRB MANUFACTURER (REFER TO TABLES ON FOR PLATE THICKNESS AND WELDS) S2.0
