A hollow structural section post bears on a one-half-inch base plate secured to the floor slab. The assembly uses one-half-inch diameter expansion bolts placed on each side of the hollow structural section with a three-and-one-half-inch embedment depth. A continuous one-quarter-inch fillet weld connects the hollow structural section to the base plate. The base plate length extends as needed to accommodate multiple hollow structural section posts where required.

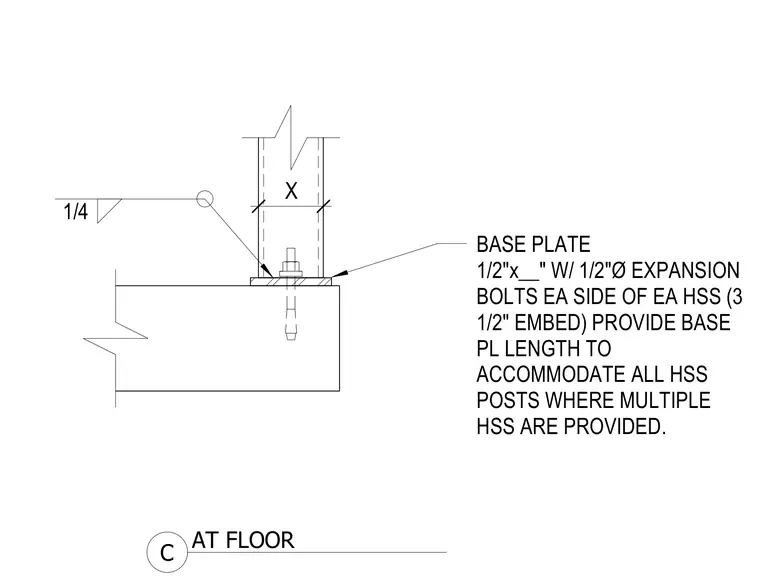

BASE PLATE 1/2"x__" W/ 1/2"Ø EXPANSION BOLTS EA SIDE OF EA HSS (3 1/2" EMBED) PROVIDE BASE PL LENGTH TO ACCOMMODATE ALL HSS POSTS WHERE MULTIPLE HSS ARE PROVIDED. 1/4 AT FLOOR C X
