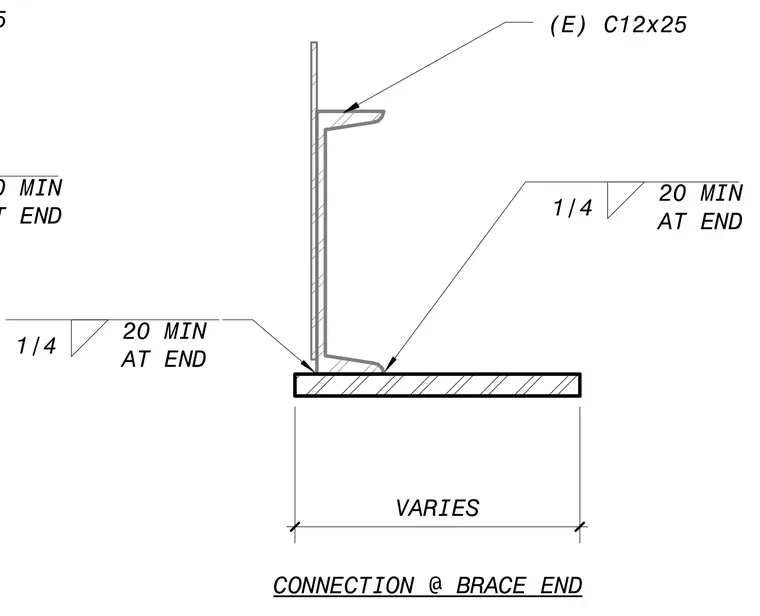

An existing C12x25 structural steel channel connects to a plate with a variable width dimension. The channel web and flanges are secured with quarter-inch fillet welds featuring twenty-inch minimum lengths at the ends.
(E) C12x25 20 MIN AT END VARIES (E) C12x25 1/4 20 MIN AT END 1/4 20 MIN AT END CONNECTION @ BRACE END
