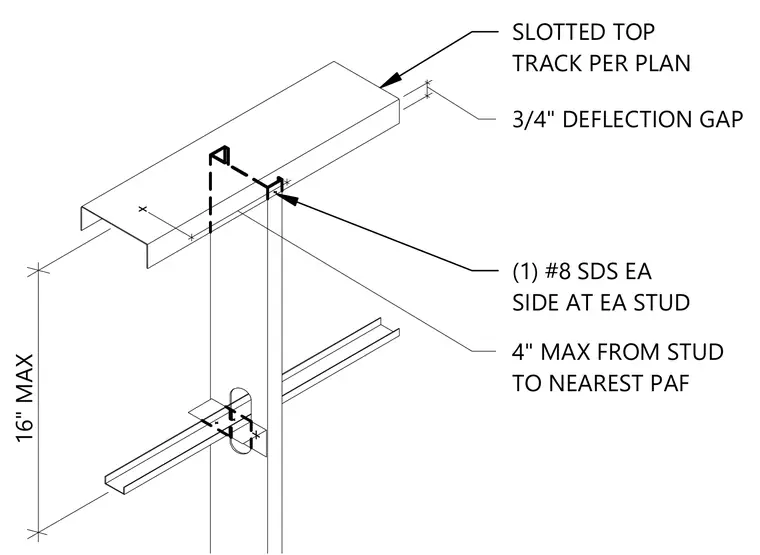

A cold-formed steel stud terminates below a slotted top track sized per plan, maintaining a three-quarter-inch deflection gap to accommodate structural movement. One number-eight self-drilling screw fastens each side at each stud. A maximum distance of four inches is required from the stud to the nearest powder-actuated fastener.
16" MAX SLOTTED TOP TRACK PER PLAN (1) #8 SDS EA SIDE AT EA STUD 4" MAX FROM STUD TO NEAREST PAF 3/4" DEFLECTION GAP
