A steel roof deck bears on a structural steel beam connected to a reinforced concrete tilt-up wall panel. The beam web connects using two L4x3x5/16 angles secured with four three-quarter inch diameter ASTM A325 bolts on each side, with the long leg on the beam web. The beam framing bears onto a WT6x13 structural tee embedded two feet long into the concrete panel with seven number five weldable reinforcing bars on alternate sides. A half-inch by seven-inch by four-inch long steel bearing plate with two number six by forty-eight-inch long weldable reinforcing bars supports the underside of the assembly. Fillet welds of five-sixteenths inch secure the embedded steel plates to the internal reinforcing elements.

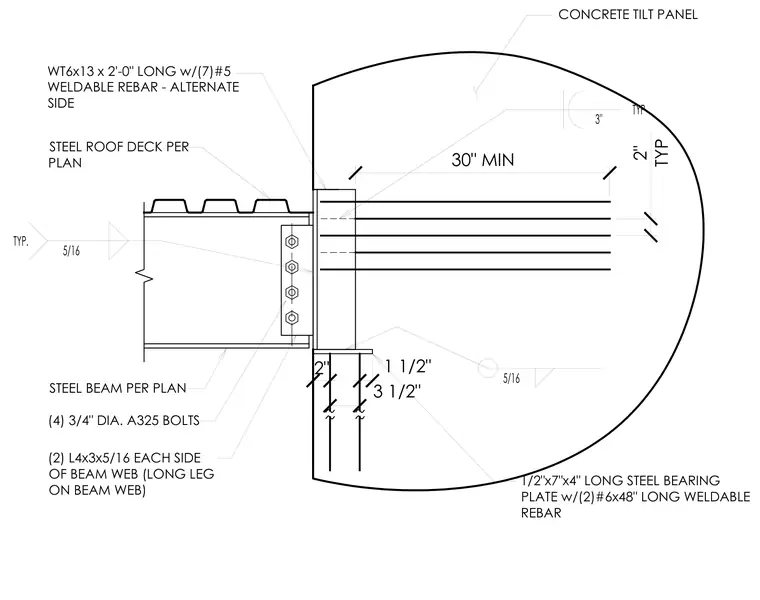

CONCRETE TILT PANEL TYP 3" 30" MIN 5/16 2" 3 1/2" 1 1/2" 1/2"x7"x4" LONG STEEL BEARING PLATE w/(2)#6x48" LONG WELDABLE REBAR 2" TYP STEEL ROOF DECK PER PLAN STEEL BEAM PER PLAN TYP. 5/16 (2) L4x3x5/16 EACH SIDE OF BEAM WEB (LONG LEG ON BEAM WEB) (4) 3/4" DIA. A325 BOLTS WT6x13 x 2'-0" LONG w/(7)#5 WELDABLE REBAR - ALTERNATE SIDE
