About this detail

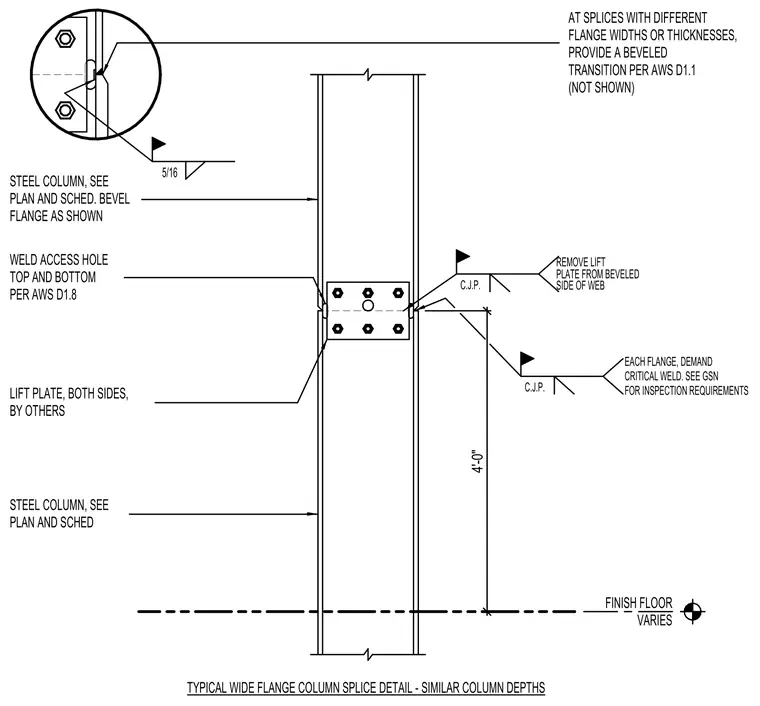

A typical wide flange steel column splice connection for columns with similar depths. Complete joint penetration welds are specified for each flange with demand critical weld requirements per general structural notes. Weld access holes are detailed at the top and bottom of the web per AWS D1.8 standards. Lift plates are provided on both sides by others and must be removed from the beveled side of the web. At splices with different flange widths or thicknesses, a beveled transition is provided per AWS D1.1.
