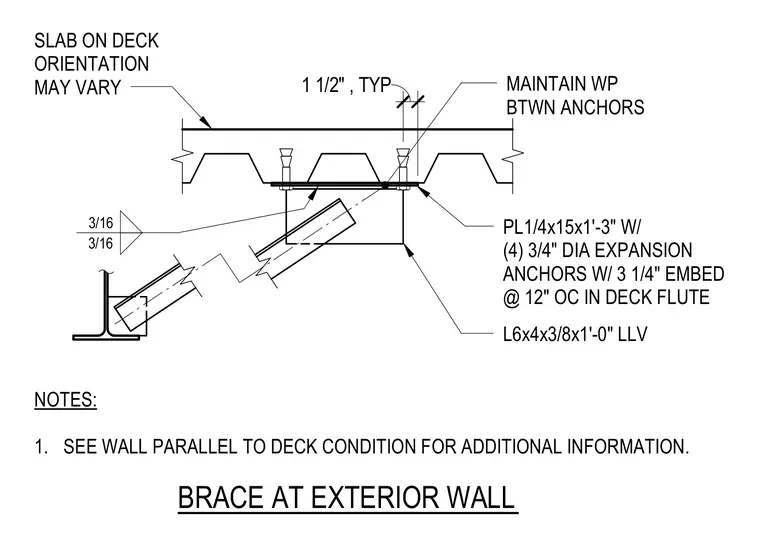

A structural brace connects to a concrete slab on metal deck using an embed plate and expansion anchors. A gusset plate or angle member, specifically an L6x4x3/8x1'-0" long leg vertical, welds to a 1/4 inch thick by 15 inch by 1 foot 3 inch steel plate secured in the deck flute. Four 3/4 inch diameter expansion anchors with a 3 and 1/4 inch embedment fasten the plate at 12 inches on center inside the deck flutes. A waterproof seal is maintained between the anchors.
BRACE AT EXTERIOR WALL MAINTAIN WP BTWN ANCHORS NOTES: 1. SEE WALL PARALLEL TO DECK CONDITION FOR ADDITIONAL INFORMATION. 1 1/2" , TYP PL1/4x15x1'-3" W/ (4) 3/4" DIA EXPANSION ANCHORS W/ 3 1/4" EMBED @ 12" OC IN DECK FLUTE L6x4x3/8x1'-0" LLV SLAB ON DECK ORIENTATION MAY VARY 3/16 3/16
