S-4JZZC — Note: All Exhaust Reel Support Members

Structural · S-4JZZC

Note: All Exhaust Reel Support Members

Units: metric
Sheet: S-MB-6.03
Discipline: Structural

Materials

Elements

Beams Bracing Columns

Connections

Bracing Connection HSS Connection

Text on the drawing

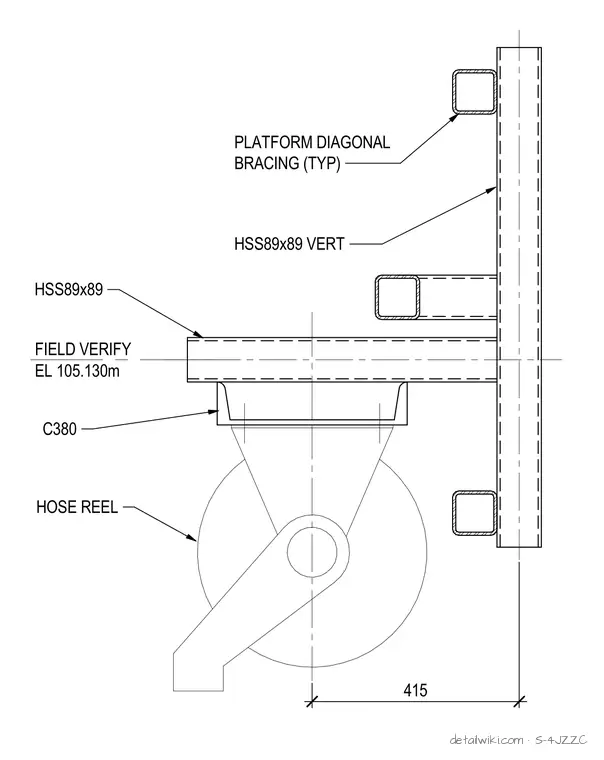

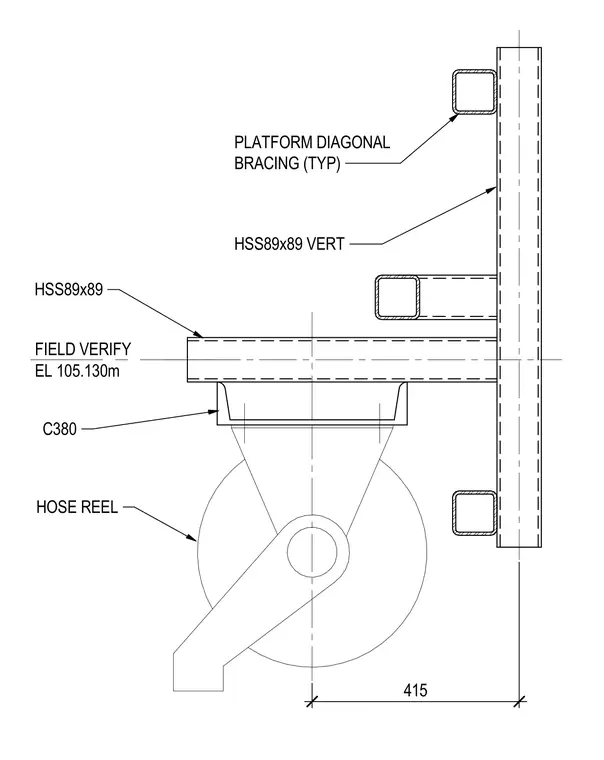

HSS89x89 C380 HOSE REEL HSS89x89 VERT PLATFORM DIAGONAL BRACING (TYP) FIELD VERIFY EL 105.130m 415
