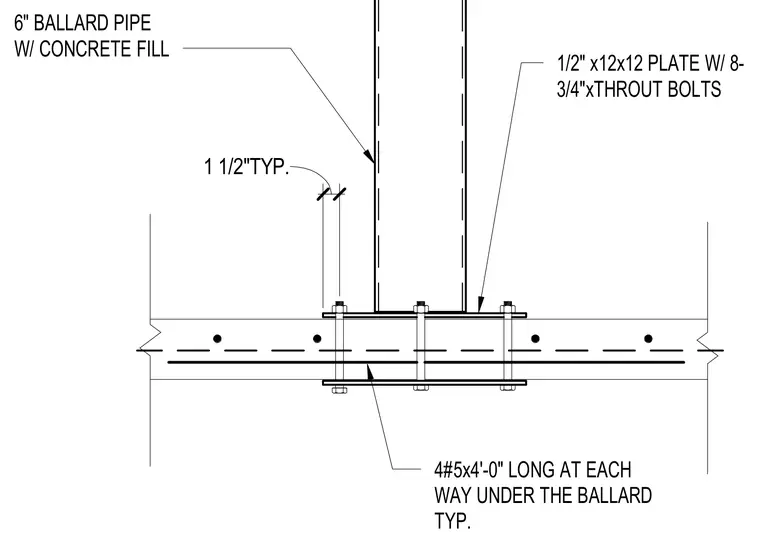

A six-inch diameter steel pipe bollard is filled with concrete and mounted to a structural slab. The bollard base consists of a half-inch by twelve-inch by twelve-inch steel plate secured by eight three-quarter-inch through-bolts. The concrete assembly below is reinforced with four number five bars, four feet zero inches long, running in each way under the bollard.
4#5x4'-0" LONG AT EACH WAY UNDER THE BALLARD TYP. 1/2" x12x12 PLATE W/ 8- 3/4"xTHROUT BOLTS 6" BALLARD PIPE W/ CONCRETE FILL 1 1/2"TYP.
