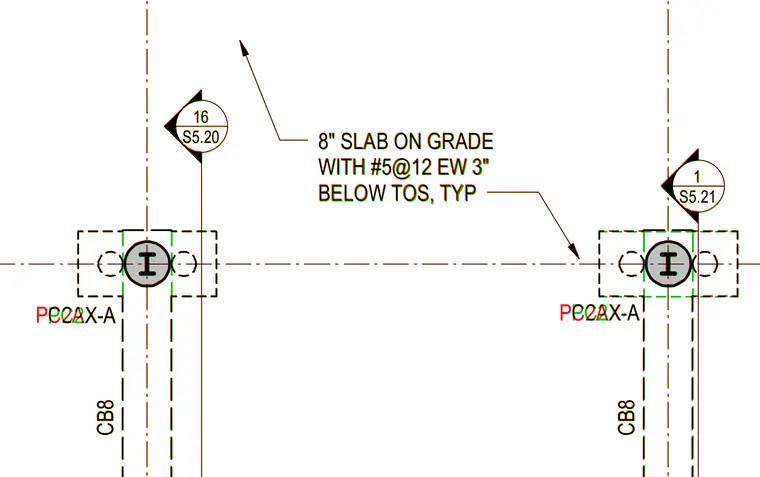

An eight-inch slab on grade features a typical reinforcement mat of number five bars spaced at twelve inches each way, positioned three inches below the top of slab. The assembly ties into structural grade beams designated as CB8, intersected by column grids with associated detail reference markers.
PC2AX-A PC2AX-A 1 S5.21 16 S5.20 CB8 CB8 8" SLAB ON GRADE WITH #5@12 EW 3" BELOW TOS, TYP PC2X-A PC2X-A 1 S5.21 16 S5.20 CB8 CB8 8" SLAB ON GRADE WITH #5@12 EW 3" BELOW TOS, TYP
