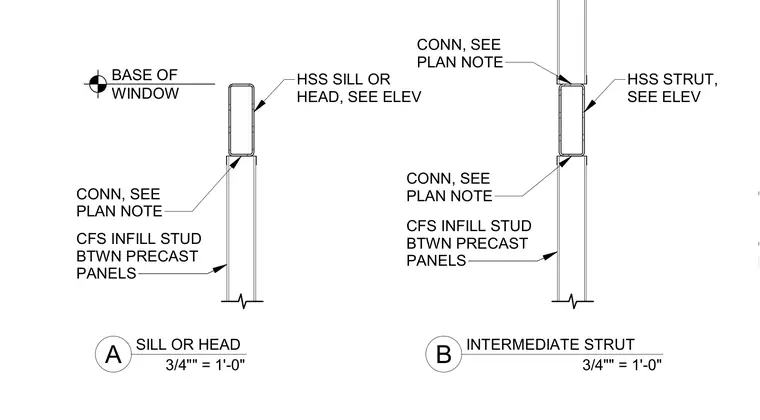

Cold-formed steel infill studs installed between precast panels connect to a hollow structural section sill or head member with a connection detailed per plan notes. An intermediate hollow structural section strut ties into the infill studs with framing connections referenced on the structural elevations. Window framing interfaces directly with the hollow structural section sill or head member.
BASE OF WINDOW CONN, SEE PLAN NOTE CFS INFILL STUD BTWN PRECAST PANELS HSS STRUT, SEE ELEV CONN, SEE PLAN NOTE B 3/4"" = 1'-0" INTERMEDIATE STRUT CONN, SEE PLAN NOTE CFS INFILL STUD BTWN PRECAST PANELS HSS SILL OR HEAD, SEE ELEV CONN, SEE PLAN NOTE A 3/4"" = 1'-0" SILL OR HEAD CFS INFILL STUD BTWN PRECAST PANELS
