Structural · S-4JPJ5

Typical Edge of Slab at Upturned Concrete Beam

Materials

Elements

Columns Beams Floors / Slabs Anchors / Embeds Reinforcing

About this detail

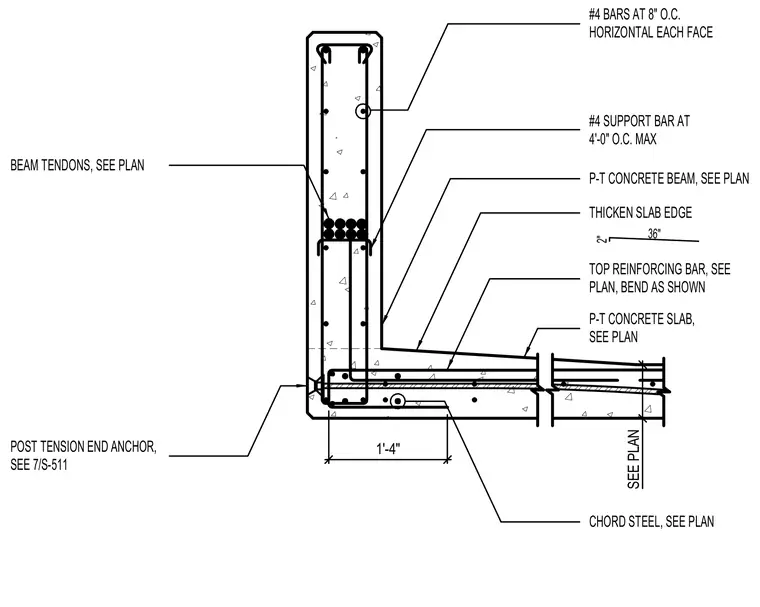

An edge condition of a post-tensioned concrete slab intersects an upturned post-tensioned concrete beam. The post-tensioned slab features top reinforcing bars bent as shown, chord steel, and beam tendons sized per plan. The upturned concrete beam includes horizontal number 4 bars at eight inches on center each face, number 4 support bars at four feet on center maximum, and a post-tension end anchor located per sheet 7/S-511. The slab edge is thickened by two inches over a thirty-six inch width as detailed.
