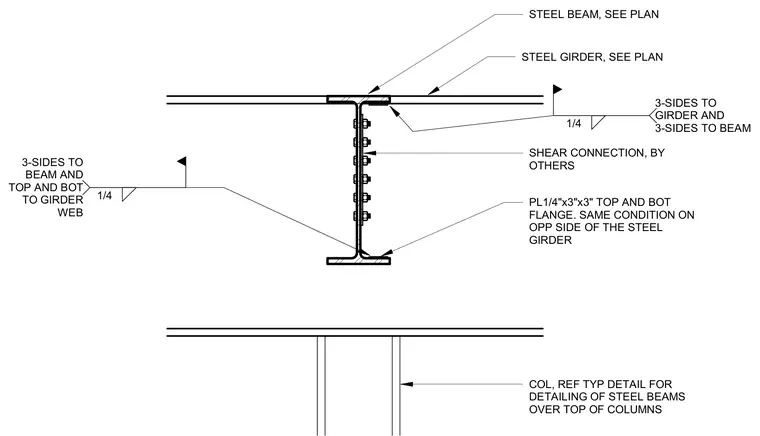

A steel beam connects to a supporting steel girder via a bolted shear connection and quarter-inch fillet welds on three sides to the girder and beam. A one-quarter-inch by three-inch by three-inch plate is welded to the top and bottom flanges with a similar condition on the opposite side of the steel girder. A column is located below with reference to a typical detail for steel beams framing over top of columns.
COL, REF TYP DETAIL FOR DETAILING OF STEEL BEAMS OVER TOP OF COLUMNS STEEL BEAM, SEE PLAN SHEAR CONNECTION, BY OTHERS PL1/4"x3"x3" TOP AND BOT FLANGE. SAME CONDITION ON OPP SIDE OF THE STEEL GIRDER STEEL GIRDER, SEE PLAN 1/4 3-SIDES TO GIRDER AND 3-SIDES TO BEAM 1/4 3-SIDES TO BEAM AND TOP AND BOT TO GIRDER WEB
