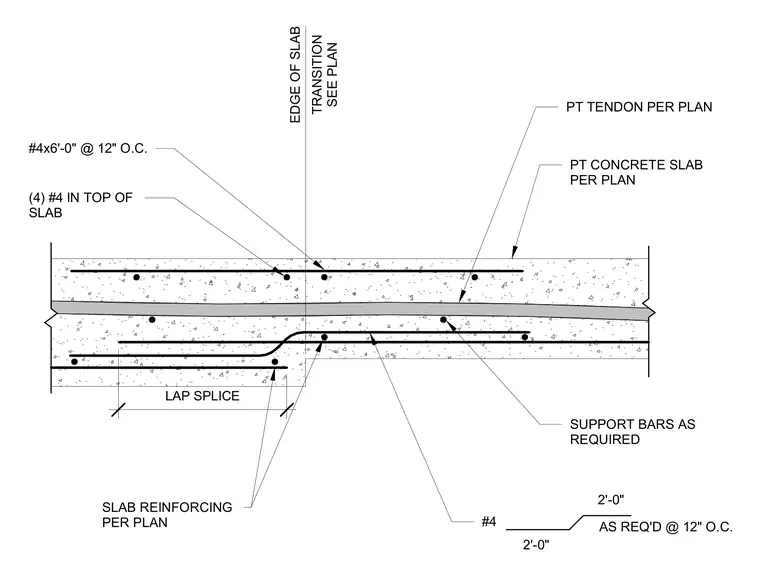

A thickness transition in a post-tensioned concrete slab. The assembly features post-tensioned concrete slab sections sized per plan with embedded post-tensioning tendons. Four number 4 bars run continuously in the top of the slab, supplemented by number 4 bars at six feet long spaced at twelve inches on center. Bottom slab reinforcing is sized per plan with a lap splice at the transition step. Support bars are provided as required to maintain reinforcing steel placement.
#4x6'-0" @ 12" O.C. (4) #4 IN TOP OF SLAB SLAB REINFORCING PER PLAN PT TENDON PER PLAN PT CONCRETE SLAB PER PLAN SUPPORT BARS AS REQUIRED #4 EDGE OF SLAB TRANSITION SEE PLAN 2'-0" 2'-0" AS REQ'D @ 12" O.C. LAP SPLICE
