Structural · S-4JJ7P

Wide-Flange Beam to Column Web Connection

Materials

Steel

Elements

Columns Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate Welded Connection Bolted Connection

About this detail

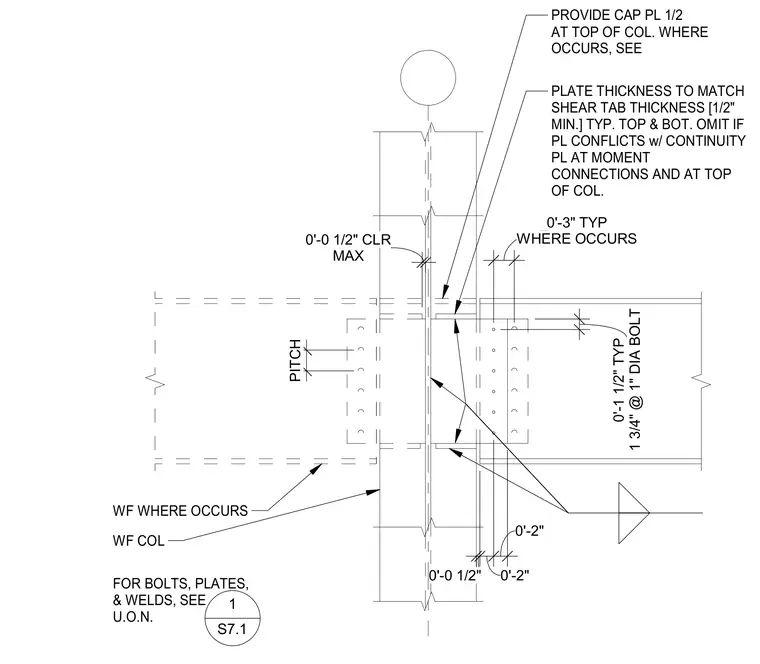

A wide-flange beam connects to a wide-flange column web using a single shear plate bolted with one-inch diameter bolts. A half-inch thick cap plate is provided at the top of the column where required, with plate thickness matching the shear tab thickness at a one-half inch minimum. The top and bottom plates are omitted if they conflict with continuity plates at moment connections and at the top of the column. A maximum zero-foot, one-half-inch clearance is maintained at the connection interface. Bolts, plates, and welds follow project standards unless otherwise noted.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
