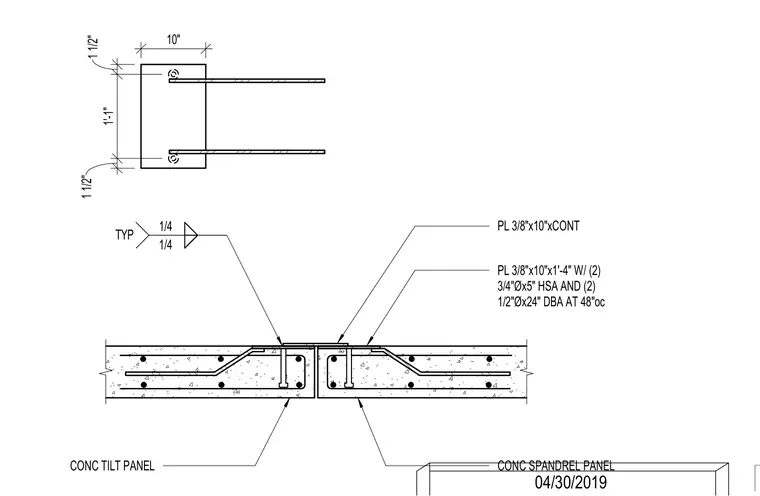

Precast concrete spandrel panels are joined using continuous 3/8-inch by 10-inch steel plates and embedded connection plates measuring 3/8-inch by 10-inch by 1 foot 4 inches. The embedded assembly is anchored into the concrete with two 3/4-inch diameter by 5-inch heavy stud anchors and two 1/2-inch diameter by 24-inch deformed bar anchors spaced at 48 inches on center. Fillet welds of 1/4-inch size secure the steel plates together typically.
CONC TILT PANEL 1/4 1/4 TYP PL 3/8"x10"xCONT PL 3/8"x10"x1'-4" W/ (2) 3/4"Øx5" HSA AND (2) 1/2"Øx24" DBA AT 48"oc CONC SPANDREL PANEL 1 1/2" 1'-1" 1 1/2" 10" 04/30/2019
