An L 2 1/2 x 2 1/2 x 1/4 angle rail is welded to the wind column at each rail location, with its outside edge flush with the face of the column. A one-quarter-inch toe plate is welded to the grating by the grating fabricator. The framing and grating are sized per plan, and the wind column is positioned as detailed on the structural plan.

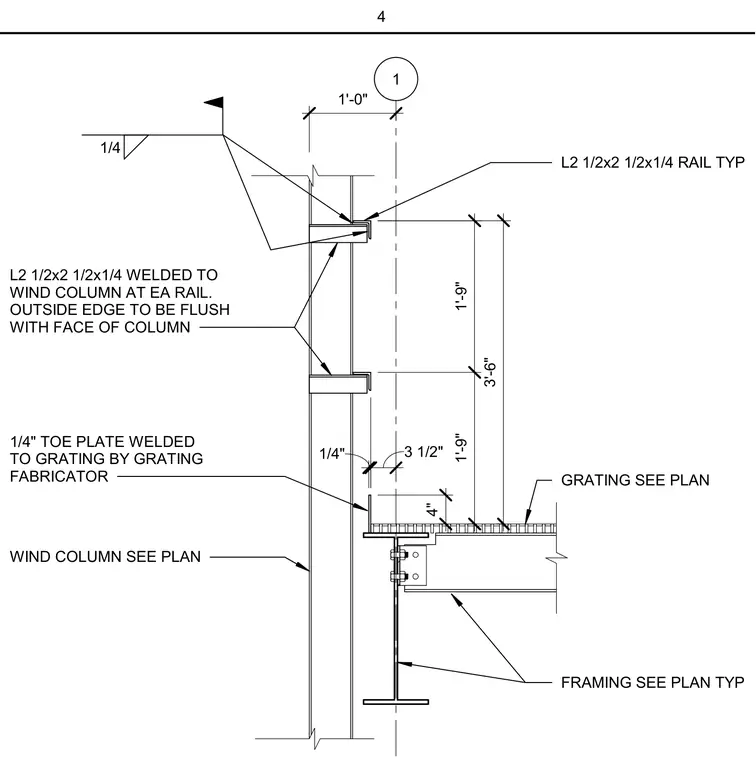

L2 1/2x2 1/2x1/4 WELDED TO WIND COLUMN AT EA RAIL. OUTSIDE EDGE TO BE FLUSH WITH FACE OF COLUMN L2 1/2x2 1/2x1/4 RAIL TYP 1/4" 3 1/2" 4" 1'-9" 1'-9" 3'-6" 1/4 FRAMING SEE PLAN TYP GRATING SEE PLAN 1'-0" 1/4" TOE PLATE WELDED TO GRATING BY GRATING FABRICATOR WIND COLUMN SEE PLAN 1 4
