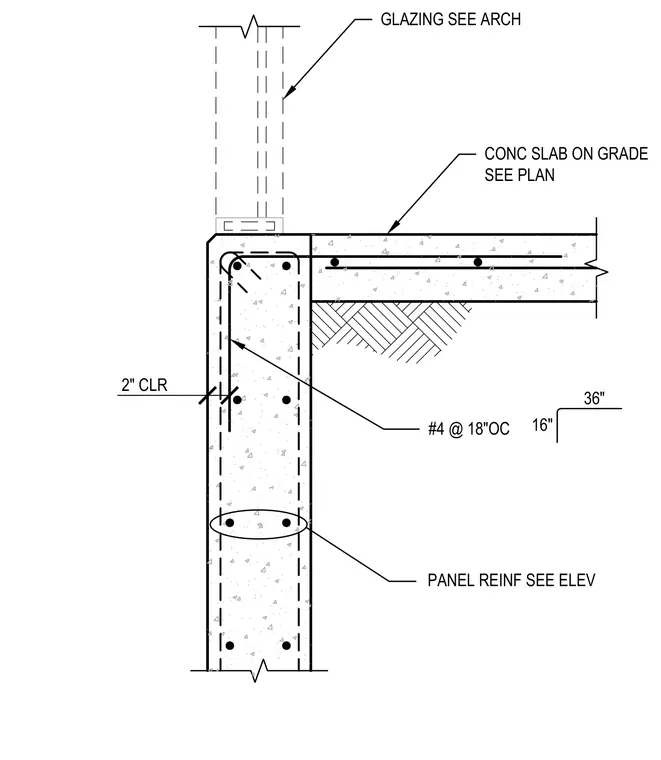

A concrete slab on grade bears against a reinforced concrete wall with panel reinforcement sized per elevation. Number 4 reinforcing bars spaced at eighteen inches on center are provided with a two-inch clear cover. A glazing assembly sized per architectural drawings sits on top of the concrete wall.
GLAZING SEE ARCH CONC SLAB ON GRADE SEE PLAN #4 @ 18"OC PANEL REINF SEE ELEV 16" 36" 2" CLR
