Structural · S-4J6G2

Louver Header and Mullion Detail

Materials

Steel Metal (misc.)

Elements

Columns Beams Facades / Cladding Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Bolted Connection Deck Attachment Embed Plate

About this detail

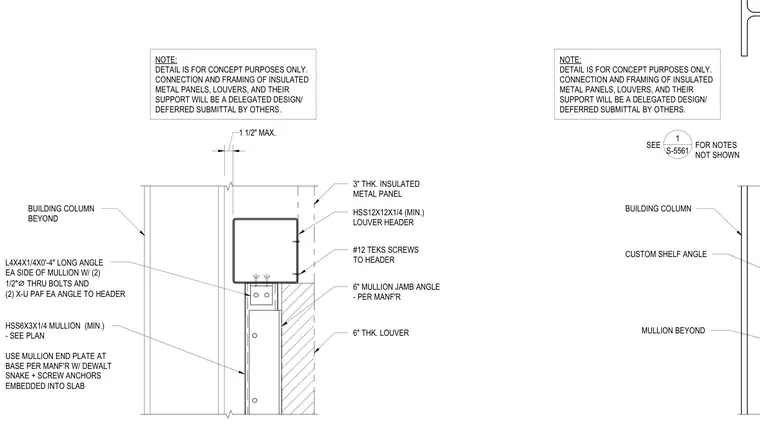

An HSS12x12x1/4 hollow structural section serves as the louver header, supporting a 3-inch thick insulated metal panel above. An HSS6x3x1/4 mullion connects below using an L4x4x1/4 angle on each side, fastened with two 1/2-inch diameter through-bolts and two powder-actuated fasteners into the header. A 6-inch mullion jamb angle per manufacturer secures the 6-inch thick louver assembly, while number 12 TEKS screws attach panels to the header. The base of the mullion utilizes a manufacturer-specified end plate anchored to the slab with DeWalt snake and screw anchors. A building column sits beyond with a custom shelf angle, and notes indicate the assembly is for concept purposes with connection and framing by others under a delegated design.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
