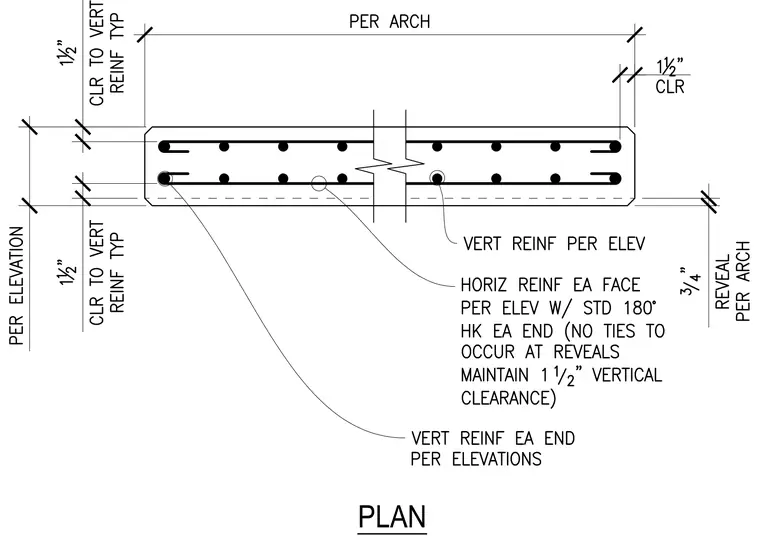

A concrete wall plan detail shows two layers of vertical and horizontal reinforcing steel with standard 180-degree hooks at each end. Horizontal reinforcing is placed on each face per elevations with no ties occurring at reveals, maintaining one and one-half inches of vertical clearance. Vertical reinforcing at the ends and faces is sized per elevations and architectural plans. The assembly includes a three-quarter-inch reveal per architectural drawings and one and one-half inches of clearance to vertical reinforcing.
