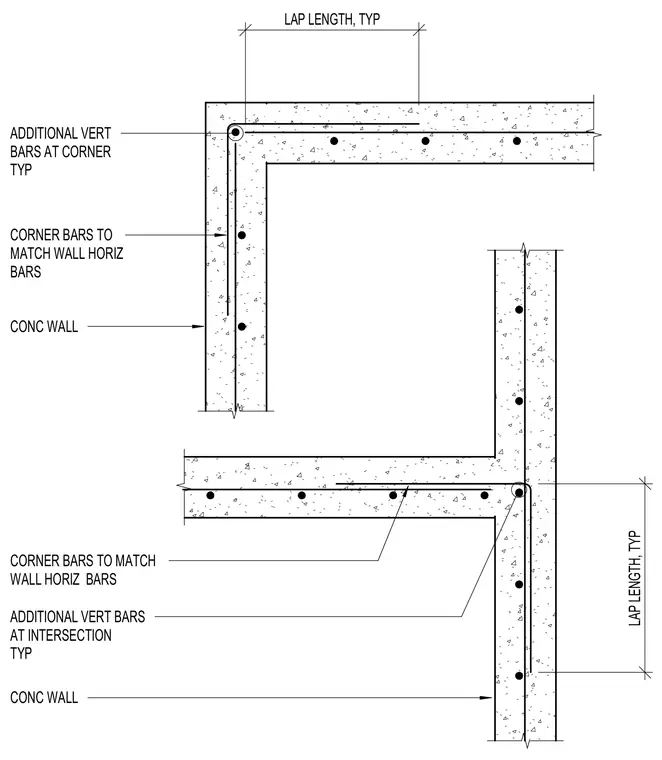

Reinforcing bar placement at standard 90-degree corners and wall intersections for single reinforced concrete walls. Corner bars match the size and spacing of the wall horizontal reinforcing and extend past the corner with a typical lap length. Additional vertical reinforcing bars are positioned at the inside of the corner and intersection joints. Standard lap lengths are maintained for continuity of the horizontal reinforcement.
ADDITIONAL VERT BARS AT CORNER TYP CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL ADDITIONAL VERT BARS AT INTERSECTION TYP LAP LENGTH, TYP LAP LENGTH, TYP
