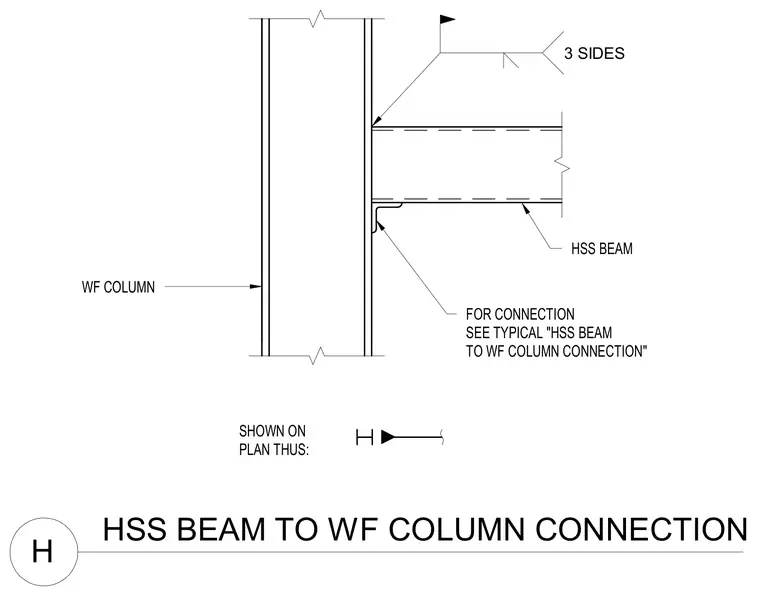

An HSS beam frames into a wide-flange column using a welded connection detail. The top flange is welded directly to the column flange along three sides. A seat angle is provided underneath the bottom flange of the HSS beam for additional bearing support. Detailed connection requirements are referenced to a typical structural standard.
HSS BEAM TO WF COLUMN CONNECTION H SHOWN ON PLAN THUS: WF COLUMN HSS BEAM FOR CONNECTION SEE TYPICAL "HSS BEAM TO WF COLUMN CONNECTION" 3 SIDES
