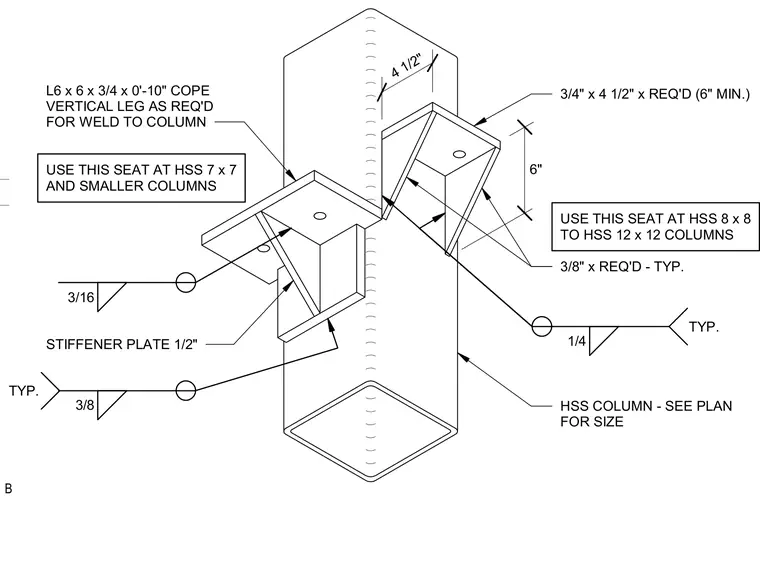

This axonometric detail shows typical structural steel beam bearing seats welded to hollow structural section columns. The assembly utilizes an L6x6x3/4 by zero-foot-ten-inch angle with a coped vertical leg welded to the column, supported by a one-half-inch or three-quarter-inch stiffener plate depending on the column size. Fillet welds of varying sizes such as three-sixteenths, one-quarter, and three-eighths inches secure the seat components to the hollow structural section column sized per plan. Two variations are presented, with specific seat configurations designated for hollow structural section columns measuring seven-by-seven inches and smaller, versus eight-by-eight up to twelve-by-twelve inches.
USE THIS SEAT AT HSS 7 x 7 AND SMALLER COLUMNS USE THIS SEAT AT HSS 8 x 8 TO HSS 12 x 12 COLUMNS STIFFENER PLATE 1/2" 3/4" x 4 1/2" x REQ'D (6" MIN.) 3/8" x REQ'D - TYP. HSS COLUMN - SEE PLAN FOR SIZE L6 x 6 x 3/4 x 0'-10" COPE VERTICAL LEG AS REQ'D FOR WELD TO COLUMN 4 1/2" 6" 3/8 TYP. 3/16 1/4 TYP. B
