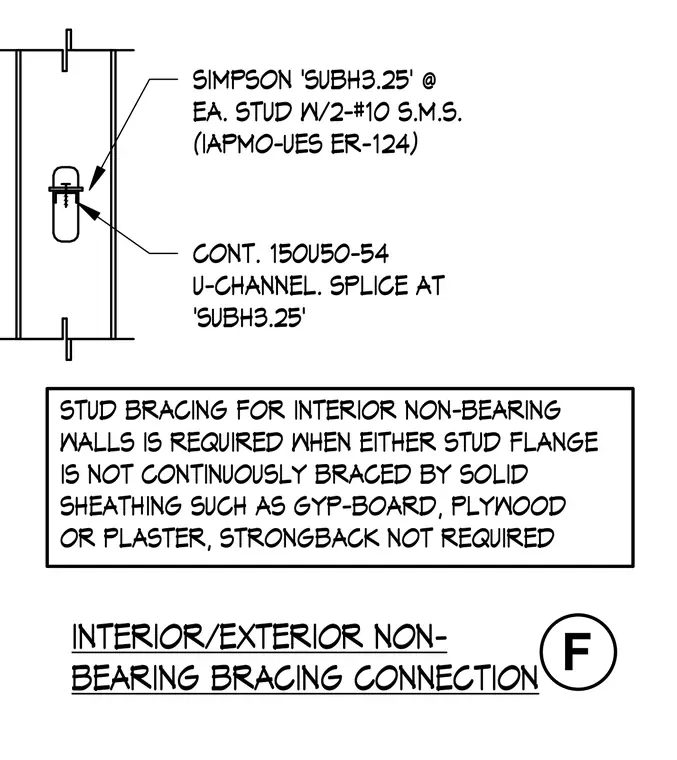

This assembly connects non-bearing metal studs using a continuous 150U50-54 U-channel spliced at each stud with a Simpson 'SUBH3.25' connector. Each connector is fastened to the stud with two number ten sheet metal screws. This bracing is required for interior and exterior non-bearing walls when either stud flange lacks continuous bracing from solid sheathing such as gypsum board, plywood, or plaster. A strongback is not required for this configuration.
SIMPSON 'SUBH3.25' @ EA. STUD W/2-#10 S.M.S. (IAPMO-UES ER-124) CONT. 150U50-54 U-CHANNEL. SPLICE AT 'SUBH3.25' STUD BRACING FOR INTERIOR NON-BEARING WALLS IS REQUIRED WHEN EITHER STUD FLANGE IS NOT CONTINUOUSLY BRACED BY SOLID SHEATHING SUCH AS GYP-BOARD, PLYWOOD OR PLASTER, STRONGBACK NOT REQUIRED INTERIOR/EXTERIOR NON- BEARING BRACING CONNECTION F
