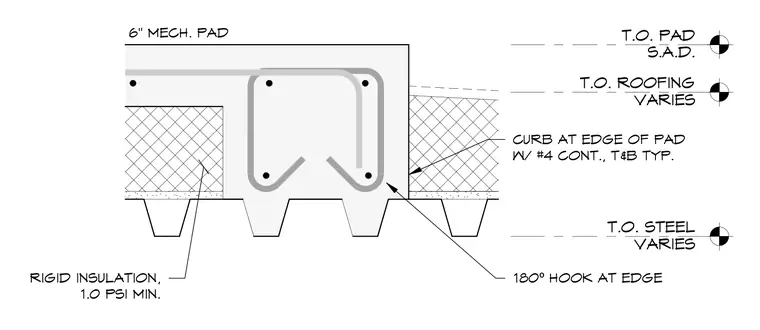

A six-inch concrete mechanical equipment pad rests on rigid insulation with a minimum density of 1.0 pounds per square inch over a corrugated metal deck roof. The pad incorporates a concrete curb at the edge containing continuous number four reinforcing bars placed top and bottom as typical. Reinforcing bars feature a one-hundred-eighty-degree hook at the outer edge for anchorage. Elevation levels are indicated for top of steel, top of roofing, and top of pad.
T.O. STEEL VARIES RIGID INSULATION, 1.0 PSI MIN. T.O. ROOFING VARIES 180 º HOOK AT EDGE T.O. PAD S.A.D. CURB AT EDGE OF PAD W/ #4 CONT., T&B TYP. 6" MECH. PAD
