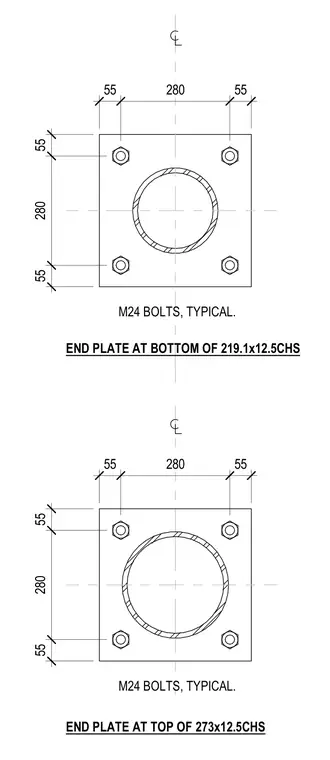

This structural steel detail shows an end plate splice connection for circular hollow section members. The assembly utilizes an end plate welded to the bottom of a 219.1x12.5 circular hollow section and another end plate at the top of a 273x12.5 circular hollow section. Connection between the plates is made using M24 bolts configured with typical edge distances and spacing dimensions of 55 millimeters and 280 millimeters.
55 280 55 55 280 55 55 280 55 55 280 55 END PLATE AT BOTTOM OF 219.1x12.5CHS END PLATE AT TOP OF 273x12.5CHS M24 BOLTS, TYPICAL. M24 BOLTS, TYPICAL.
