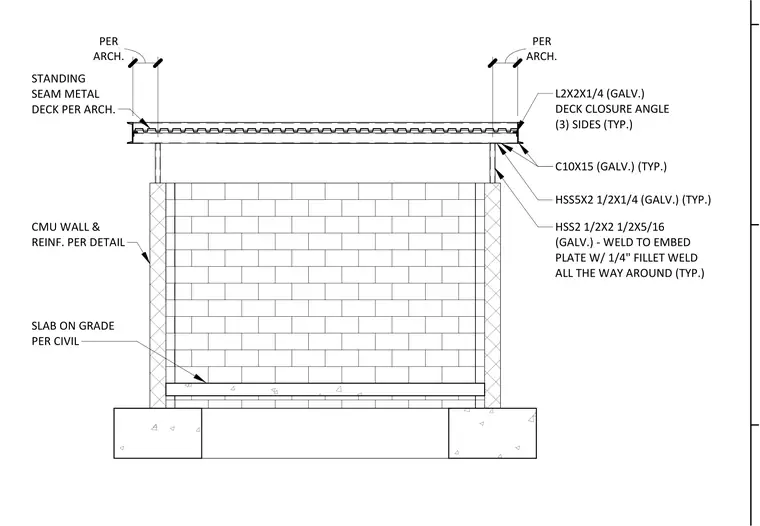

This assembly features a standing seam metal deck supported by a C10x15 galvanized channel perimeter. The roof structure is carried by HSS 5x2 1/2x1/4 galvanized posts, which are supported by HSS 2 1/2x2 1/2x5/16 galvanized members welded to embed plates with a 1/4 inch fillet weld all the way around. A L2x2x1/4 galvanized deck closure angle is installed on three sides of the perimeter. The entire structure sits atop a CMU wall with reinforcement per detail and a slab on grade per civil drawings.
Text on the drawing
ARCH. PER ARCH. PER C10X15 (GALV.) (TYP.) L2X2X1/4 (GALV.) DECK CLOSURE ANGLE (3) SIDES (TYP.) HSS5X2 1/2X1/4 (GALV.) (TYP.) HSS2 1/2X2 1/2X5/16 (GALV.) - WELD TO EMBED PLATE W/ 1/4" FILLET WELD ALL THE WAY AROUND (TYP.) CMU WALL & REINF. PER DETAIL SLAB ON GRADE PER CIVIL STANDING SEAM METAL DECK PER ARCH.
