Cold-formed steel framing details show the intersection and track splice configurations for interior or exterior partitions. Typical steel studs connect to the bottom track using number 10 sheet metal screws on each side at each stud location. Additional number 10 sheet metal screws fasten stud to stud at twenty-four inches on center. A maximum six-inch powder-actuated fastener spacing applies per sheet structural note zero point twenty. The bottom track layout accommodates intersecting wall segments with defined maximum clearances.

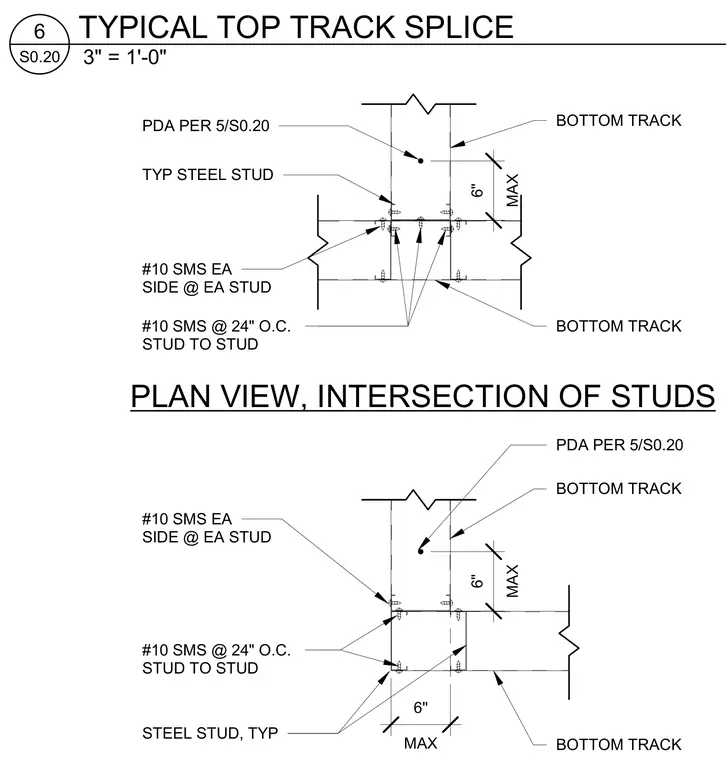

MAX 6" PDA PER 5/S0.20 TYP STEEL STUD #10 SMS EA SIDE @ EA STUD #10 SMS @ 24" O.C. STUD TO STUD BOTTOM TRACK BOTTOM TRACK PLAN VIEW, INTERSECTION OF STUDS MAX 6" BOTTOM TRACK BOTTOM TRACK MAX 6" PDA PER 5/S0.20 #10 SMS EA SIDE @ EA STUD #10 SMS @ 24" O.C. STUD TO STUD STEEL STUD, TYP 3" = 1'-0" S0.20 6 TYPICAL TOP TRACK SPLICE
