An outrigger beam connects to a column with three-sided 1/4 inch fillet welds and a 3/8 inch full depth stiffener plate detailed per plan. A continuous L3x3x1/4 angle welded with 3/16 inch fillet welds supports the adjacent concrete slab on metal deck. The assembly ties into a concrete over metal deck floor system with designated top of steel and top of slab elevations.

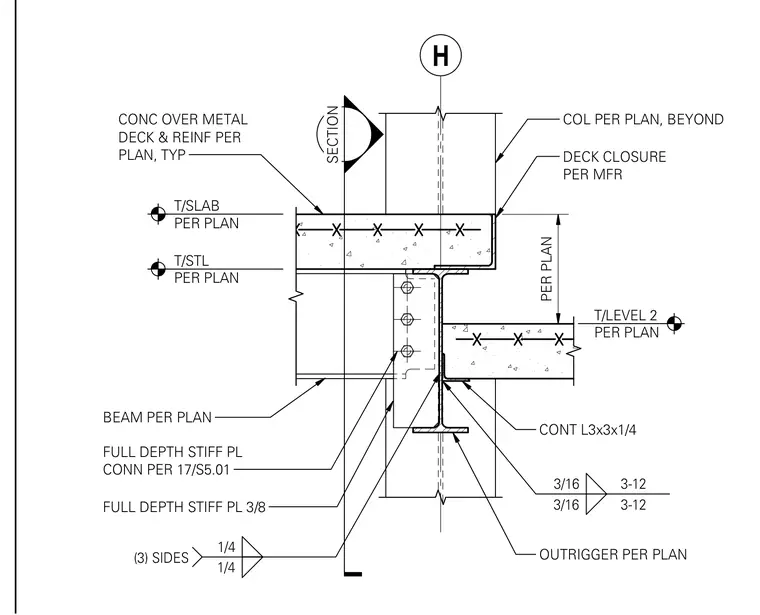

T/STL PER PLAN T/SLAB PER PLAN H T/LEVEL 2 PER PLAN SECTION CONT L3x3x1/4 3/16 3-12 3/16 3-12 1/4 1/4 (3) SIDES FULL DEPTH STIFF PL 3/8 FULL DEPTH STIFF PL CONN PER 17/S5.01 BEAM PER PLAN OUTRIGGER PER PLAN PER PLAN COL PER PLAN, BEYOND CONC OVER METAL DECK & REINF PER PLAN, TYP DECK CLOSURE PER MFR
