Typical Slab Edge Condition at Steel Column

Elements

About this detail

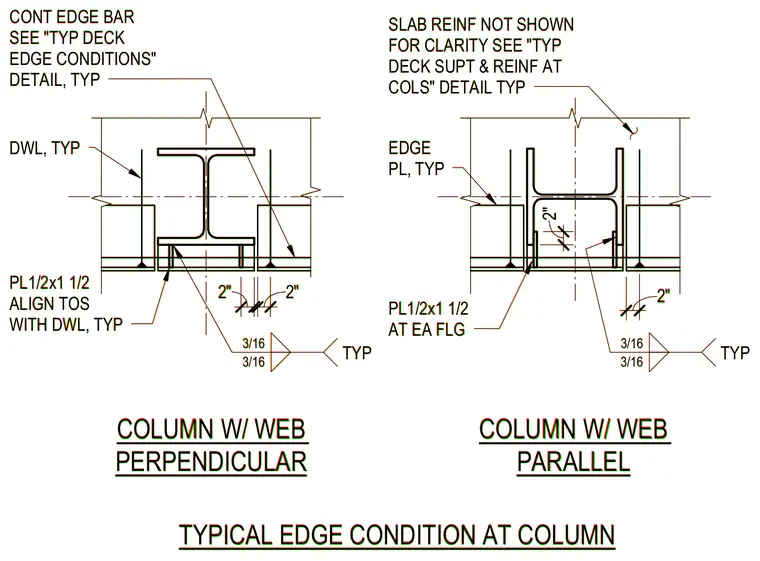

Edge conditions at a structural steel column for both perpendicular and parallel web orientations relative to the slab edge. Plates measuring one-half by one and one-half inches are aligned with the top of steel and welded to each flange using typical three-sixteenths-inch fillet welds. Edge plates are detailed alongside continuous edge bars, with slab reinforcement omitted for clarity. Dimensions indicate typical two-inch clearances and spacings.
