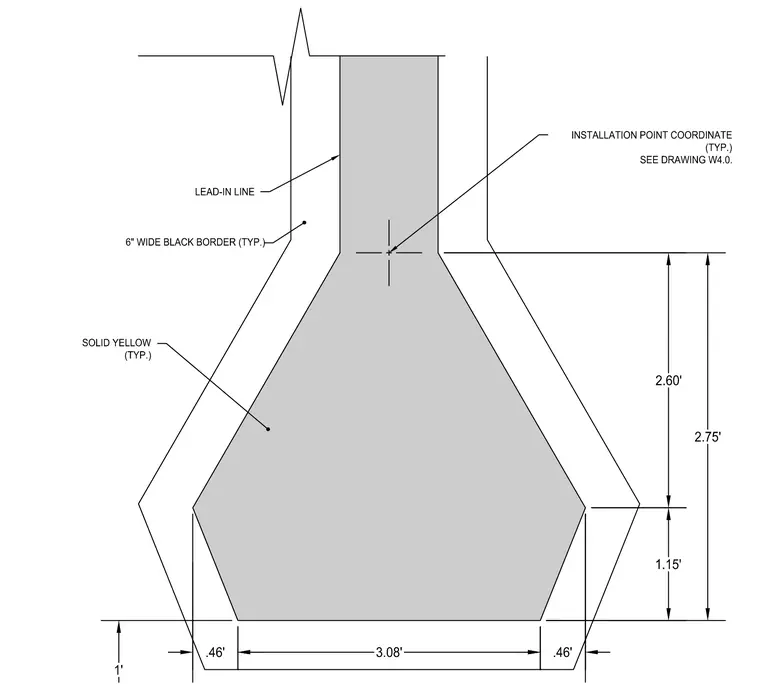

Gate designator marking layout with a six-inch wide black border and solid yellow infill. Dimensional callouts establish the geometry with a base width of 3.08 feet flanked by 0.46-foot offsets, a 1.15-foot lower height, and a 2.60-foot upper height for an overall 2.75-foot height. An installation point coordinate is located by dimensioned crosshairs, referencing drawing W4.0 for additional setting data.
INSTALLATION POINT COORDINATE (TYP.) SEE DRAWING W4.0. 3.08' .46' 1.15' 2.60' .46' 2.75' LEAD-IN LINE 6" WIDE BLACK BORDER (TYP.) SOLID YELLOW (TYP.) 1'
