Structural · S-4GQRS

Buckling-Restrained Braced Frame Beam Connection Detail

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

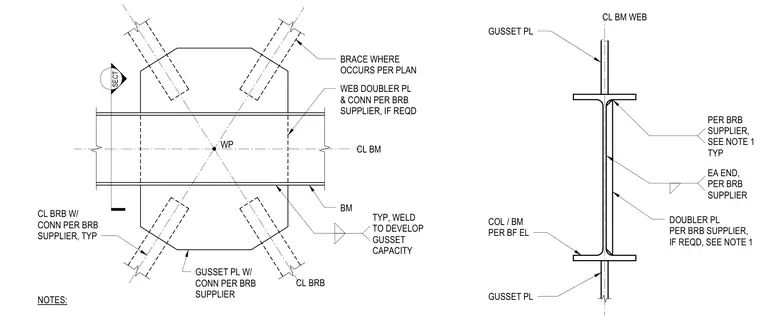

This structural steel detail shows a buckling-restrained brace connection framing into a beam and column intersection with a central work point. A gusset plate connects the buckling-restrained braces to the beam web, with weld sizes specified to develop the full capacity of the gusset plate. Web doubler plates are added to the beam web as required per the brace supplier specifications. Additional braces are provided where indicated on the structural plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
