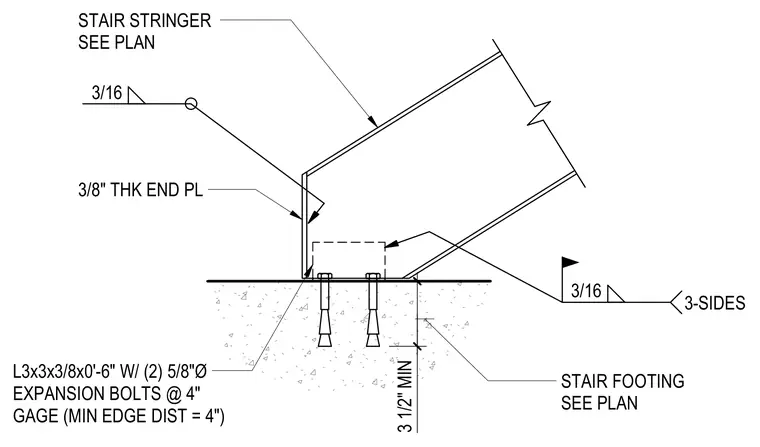

The steel stair stringer terminates at a concrete stair footing with a three-eighths-inch-thick end plate welded to the stringer with a three-sixteenths-inch fillet weld on three sides. The assembly is anchored to the footing using an L3x3x3/8-inch by zero-foot-six-inch angle secured with two five-eighths-inch-diameter expansion bolts at a four-inch gage with a minimum four-inch edge distance.
STAIR FOOTING SEE PLAN STAIR STRINGER SEE PLAN 3/8" THK END PL 3/16 3/16 3-SIDES L3x3x3/8x0'-6" W/ (2) 5/8"Ø EXPANSION BOLTS @ 4" GAGE (MIN EDGE DIST = 4") 3 1/2" MIN
