Concrete slab on metal deck reinforced with typical reinforcement and chord bars marked "C" on plan. The slab edge is sized per plan with a three-inch dimension from the edge. Typical reinforcement maintains a one-inch clearance, with a three-inch minimum and six-inch maximum spacing.

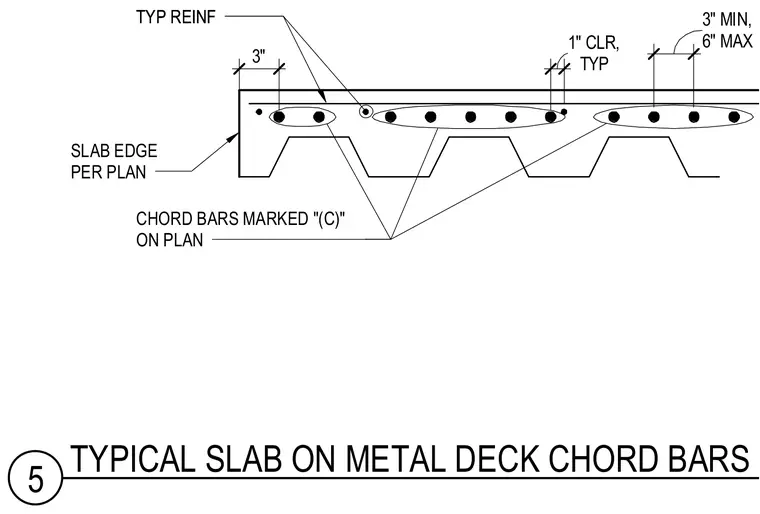

CHORD BARS MARKED "(C)" ON PLAN 3" TYP REINF TYP 1" CLR, 6" MAX 3" MIN, SLAB EDGE PER PLAN TYP REINF 5 TYPICAL SLAB ON METAL DECK CHORD BARS
