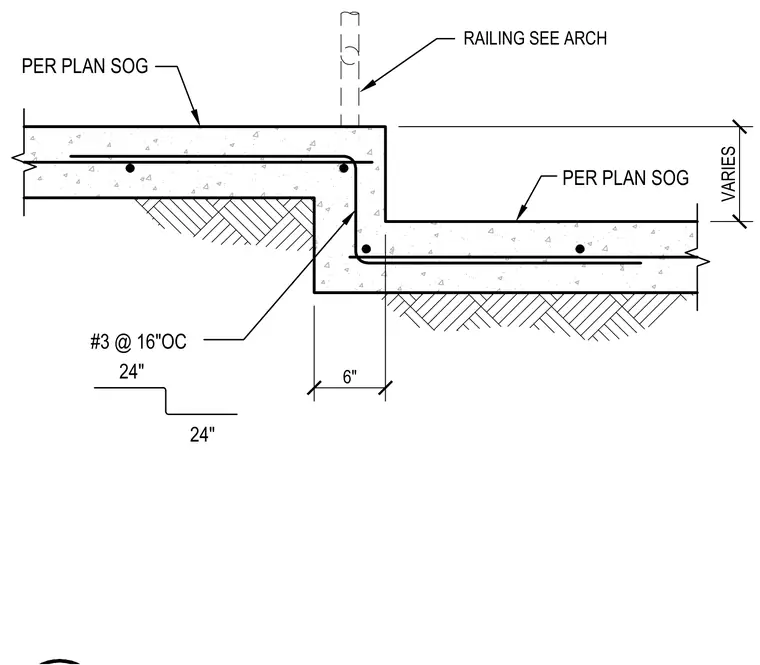

A vertical step in a concrete slab on grade incorporates reinforcing steel placement. The stepped slab assembly features number 3 reinforcing bars spaced at sixteen inches on center along the vertical transition, with slab dimensions varying per plan. A railing is anchored into the upper slab level with locations and sizes determined by architectural plans. The concrete bears directly on prepared subgrade material.
