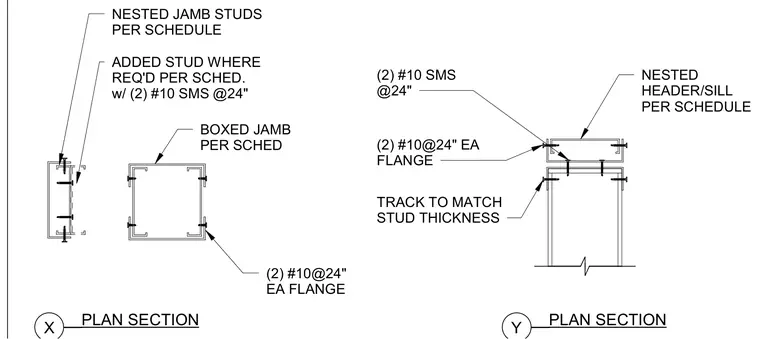

Cold-formed steel framing connections show nested jamb studs and boxed jamb configurations fastened with two number ten screws at twenty-four inches on center on each flange. Additional studs are integrated as required per schedule and secured with self-tapping sheet metal screws. The header and sill members consist of nested track profiles matching the stud thickness and are fastened through the flanges.
__ __ X PLAN SECTION __ __ Y PLAN SECTION NESTED JAMB STUDS PER SCHEDULE (2) #10@24" EA FLANGE BOXED JAMB PER SCHED (2) #10 SMS @24" (2) #10@24" EA FLANGE TRACK TO MATCH STUD THICKNESS NESTED HEADER/SILL PER SCHEDULE ADDED STUD WHERE REQ'D PER SCHED. w/ (2) #10 SMS @24"
