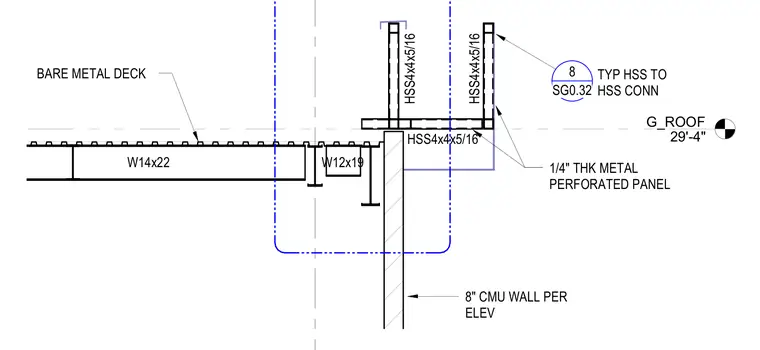

An eight-inch concrete masonry unit wall supports the roof framing elevation at twenty-nine feet four inches. A W12x19 steel beam and W14x22 steel beam support a bare metal deck. Hollow structural section members, specifically HSS4x4x5/16, form the upper framing and parapet structure connected by typical hollow structural section connections. One-quarter-inch thick metal perforated panels attach externally to the hollow structural section framing.
G_ROOF 29'-4" W14x22 W12x19 HSS4x4x5/16 HSS4x4x5/16 HSS4x4x5/16 8" CMU WALL PER ELEV 1/4" THK METAL PERFORATED PANEL TYP HSS TO HSS CONN 8 SG0.32 BARE METAL DECK
