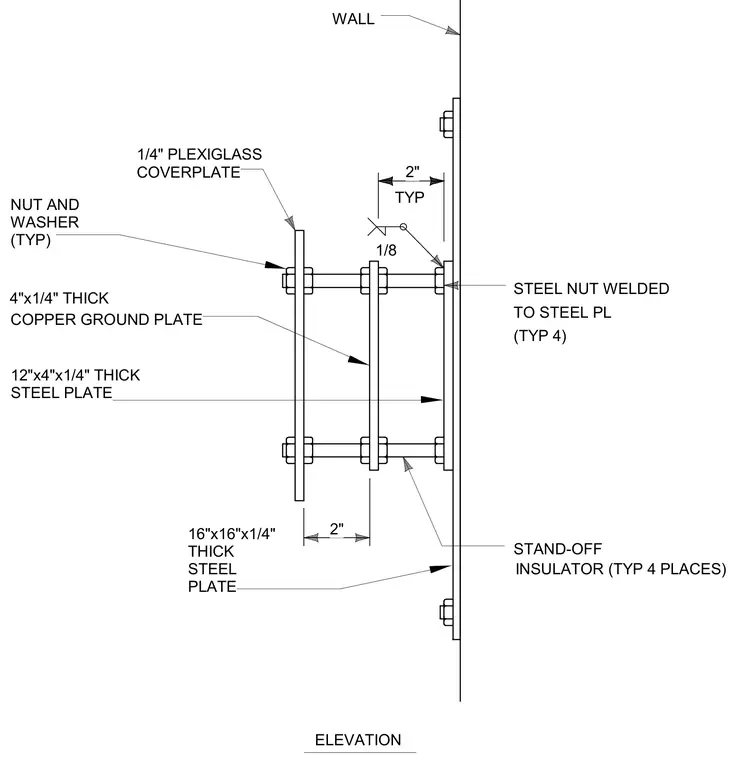

A 16-inch by 16-inch by 1/4-inch thick steel plate is mounted to the wall and serves as the backing for the ground assembly. A 12-inch by 4-inch by 1/4-inch thick steel plate secures four stand-off insulators in typical locations, held by steel nuts welded to the steel plate with an eighth-inch fillet weld. A 4-inch by 1/4-inch thick copper ground plate is fastened between the stand-off assemblies. A 1/4-inch plexiglass cover plate is secured over the outer face using typical nuts and washers.
1/4" PLEXIGLASS COVERPLATE COPPER GROUND PLATE WALL STEEL NUT WELDED TO STEEL PL STAND-OFF INSULATOR (TYP 4 PLACES) (TYP 4) NUT AND WASHER (TYP) ELEVATION 16"x16"x1/4" THICK STEEL PLATE 12"x4"x1/4" THICK STEEL PLATE 4"x1/4" THICK 2" TYP 1/8 2"
