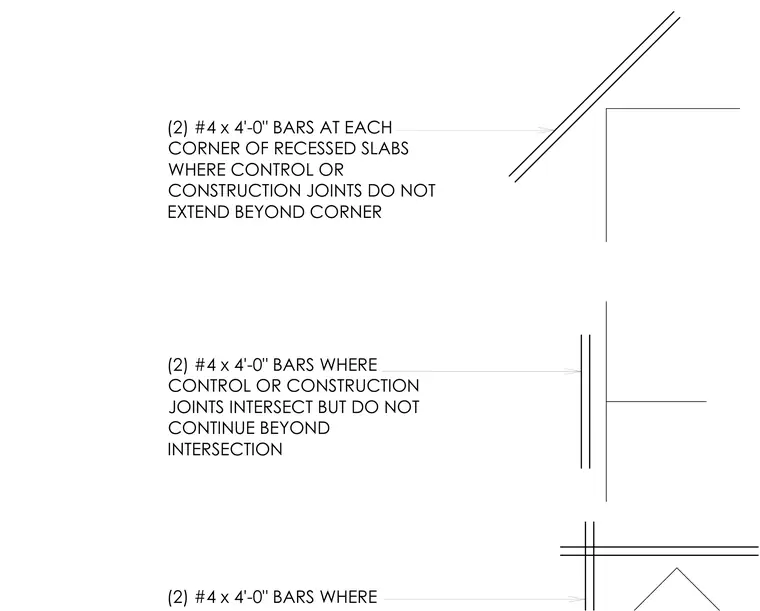

Two number four reinforcing bars measuring four feet in length are placed at each corner of recessed concrete slabs where control or construction joints do not extend beyond the corner. Two number four bars measuring four feet in length are installed where control or construction joints intersect without continuing past the intersection point.
(2) #4 x 4'-0" BARS AT EACH CORNER OF RECESSED SLABS WHERE CONTROL OR CONSTRUCTION JOINTS DO NOT EXTEND BEYOND CORNER (2) #4 x 4'-0" BARS WHERE CONTROL OR CONSTRUCTION JOINTS INTERSECT BUT DO NOT CONTINUE BEYOND INTERSECTION (2) #4 x 4'-0" BARS WHERE
