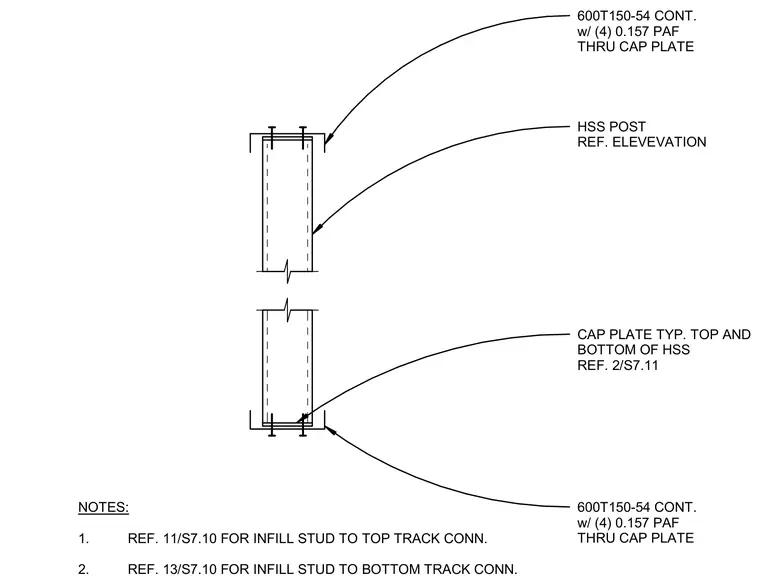

A hollow structural section post connects top and bottom to continuous 600T150-54 metal tracks via cap plates. Four 0.157-inch powder-actuated fasteners secure each continuous track through the cap plate at both the top and bottom of the HSS post.
600T150-54 CONT. w/ (4) 0.157 PAF THRU CAP PLATE HSS POST REF. ELEVEVATION CAP PLATE TYP. TOP AND BOTTOM OF HSS REF. 2/S7.11 600T150-54 CONT. w/ (4) 0.157 PAF THRU CAP PLATE NOTES: 1. REF. 11/S7.10 FOR INFILL STUD TO TOP TRACK CONN. 2. REF. 13/S7.10 FOR INFILL STUD TO BOTTOM TRACK CONN.
