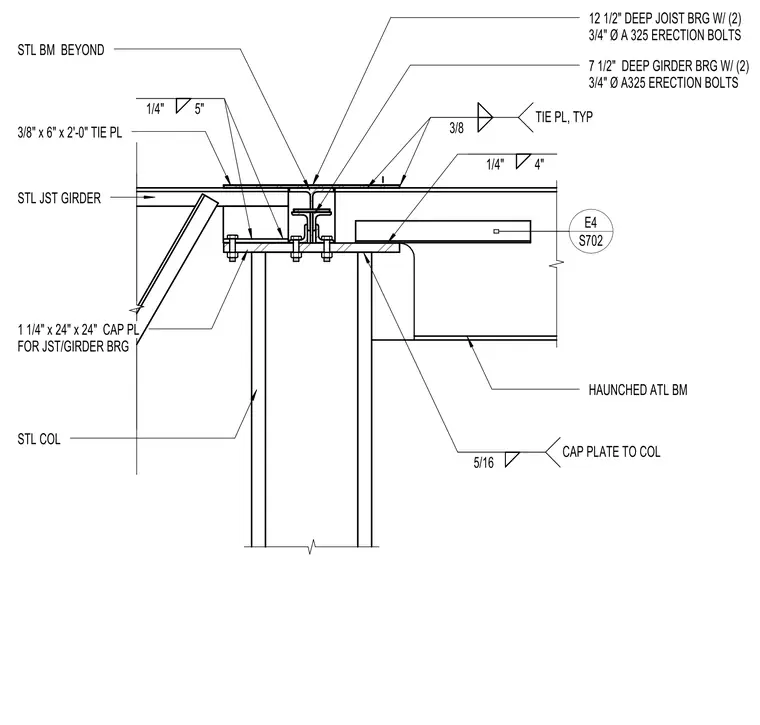

A steel column supports a 1 1/4 inch thick by 24 inch by 24 inch cap plate secured with a 5/16 inch fillet weld. A steel joist girder and a haunched attachment beam bear onto the cap plate, with the joist girder utilizing a 7 1/2 inch deep bearing with two 3/4 inch diameter A325 erection bolts. An adjacent 12 1/2 inch deep joist bearing is connected with two 3/4 inch diameter A325 erection bolts. A 3/8 inch by 6 inch by 2 foot 0 inch tie plate spans across the members and is welded with 1/4 inch fillet welds.
STL JST GIRDER 3/8" x 6" x 2'-0" TIE PL STL BM BEYOND 12 1/2" DEEP JOIST BRG W/ (2) 3/4" Ø A 325 ERECTION BOLTS 7 1/2" DEEP GIRDER BRG W/ (2) 3/4" Ø A325 ERECTION BOLTS HAUNCHED ATL BM STL COL 1 1/4" x 24" x 24" CAP PL FOR JST/GIRDER BRG S702 E4 1/4" 5" 5/16 CAP PLATE TO COL 1/4" 4" 3/8 TIE PL, TYP
