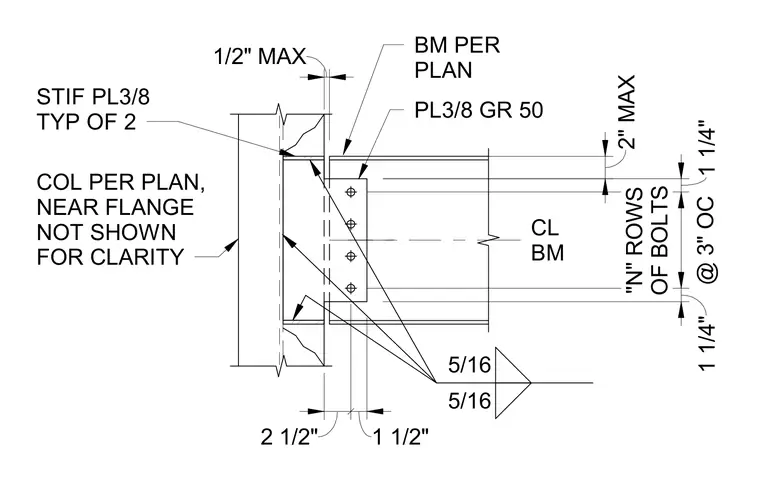

A structural steel beam frames into a column flange using an extended shear tab made of three-eighths-inch Grade 50 steel plate. The connection is secured with multiple rows of bolts spaced at three inches on center, with specific edge and setback dimensions. Two three-eighths-inch stiffener plates are welded horizontally to the column web and flanges to reinforce the joint. Five-sixteenths-inch fillet welds attach the shear tab to the beam web and the stiffeners to the column. The near flange of the column is omitted for clarity.
1 1/4" @ 3" OC "N" ROWS OF BOLTS 1 1/4" PL3/8 GR 50 STIF PL3/8 TYP OF 2 1/2" MAX 2" MAX 5/16 5/16 CL BM 2 1/2" 1 1/2" BM PER PLAN COL PER PLAN, NEAR FLANGE NOT SHOWN FOR CLARITY
