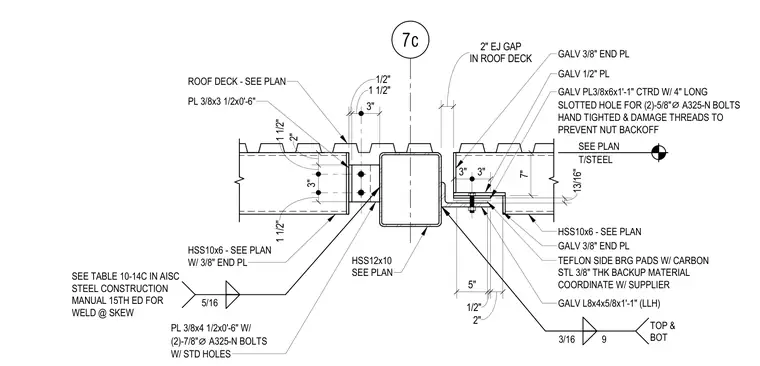

A structural detail for a canopy expansion joint slip connection utilizing hollow structural section members including an HSS12x10 and connecting HSS10x6 sections sized per plan. A 2-inch expansion joint gap is provided in the roof deck across the junction. Teflon side bearing pads with 3/8-inch thick carbon steel backup material are coordinated with the supplier. The connection incorporates a galvanized L8x4x5/8x1'-1" long leg horizontal angle and multiple galvanized plates including a 3/8x6x1'-1" plate centered with a 4-inch long slotted hole for two 5/8-inch diameter A325-N bolts, hand-tightened with damaged threads to prevent nut backoff. Additional connections use 3/8x4 1/2x0'-6" plates with two 7/8-inch diameter A325-N bolts in standard holes, and 3/8x3 1/2x0'-6" plates welded with 5/16-inch fillet welds top and bottom. A 3/8-inch end plate is provided with welds conforming to Table 10-14C in the AISC Steel Construction Manual 15th Edition for skew plates.
1 1/2" 3" 1 1/2" 2" PL 3/8x3 1/2x0'-6" HSS10x6 - SEE PLAN W/ 3/8" END PL SEE TABLE 10-14C IN AISC STEEL CONSTRUCTION MANUAL 15TH ED FOR WELD @ SKEW PL 3/8x4 1/2x0'-6" W/ (2)-7/8" ⌀ A325-N BOLTS W/ STD HOLES 13/16" 3" 3" GALV 3/8" END PL GALV 1/2" PL GALV PL3/8x6x1'-1" CTRD W/ 4" LONG SLOTTED HOLE FOR (2)-5/8" ⌀ A325-N BOLTS HAND TIGHTED & DAMAGE THREADS TO PREVENT NUT BACKOFF TEFLON SIDE BRG PADS W/ CARBON STL 3/8" THK BACKUP MATERIAL COORDINATE W/ SUPPLIER GALV 3/8" END PL GALV L8x4x5/8x1'-1" (LLH) HSS10x6 - SEE PLAN 7" 3/16 9 TOP & BOT 5/16 ROOF DECK - SEE PLAN 2" EJ GAP IN ROOF DECK 1/2" 1 1/2" 3" HSS12x10 SEE PLAN 5" 1/2" 2" 7c T/STEEL SEE PLAN
