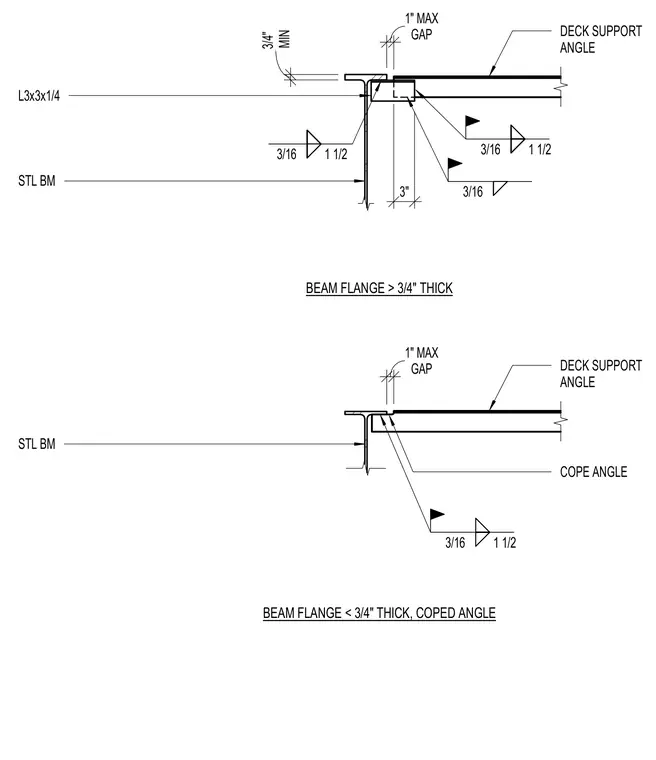

A deck support angle consisting of an L3x3x1/4 structural steel angle is welded to a steel beam with a three-sixteenth-inch fillet weld at one and a half inch spacing, maintaining a one inch maximum gap. For beam flanges greater than three-quarters of an inch thick, the angle is welded directly to the flange face. For beam flanges less than three-quarters of an inch thick, the angle is coped to clear the fillet radius of the beam.
BEAM FLANGE > 3/4" THICK BEAM FLANGE < 3/4" THICK, COPED ANGLE GAP 1" MAX DECK SUPPORT ANGLE COPE ANGLE 3/16 1 1/2 GAP 1" MAX DECK SUPPORT ANGLE 3" MIN 3/4" 3/16 1 1/2 3/16 L3x3x1/4 3/16 1 1/2 STL BM STL BM
