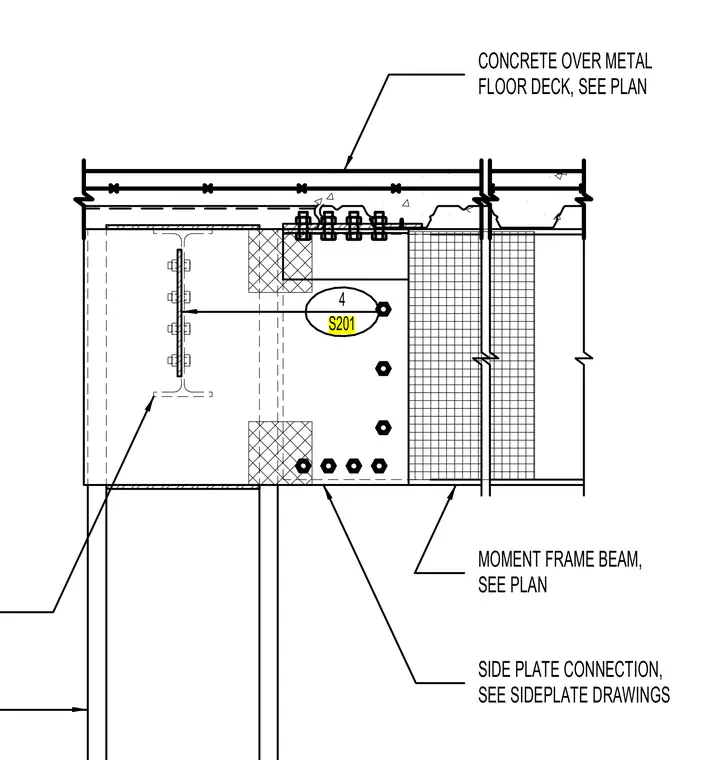

A moment frame beam connects to a structural steel column using a side plate connection system sized per plan. Concrete cast over a metal floor deck bears atop the framing assembly. Additional connection specifications are detailed on the corresponding sideplate drawings.
MOMENT FRAME BEAM, SEE PLAN CONCRETE OVER METAL FLOOR DECK, SEE PLAN SIDE PLATE CONNECTION, SEE SIDEPLATE DRAWINGS 4 S201
